bf tripping device

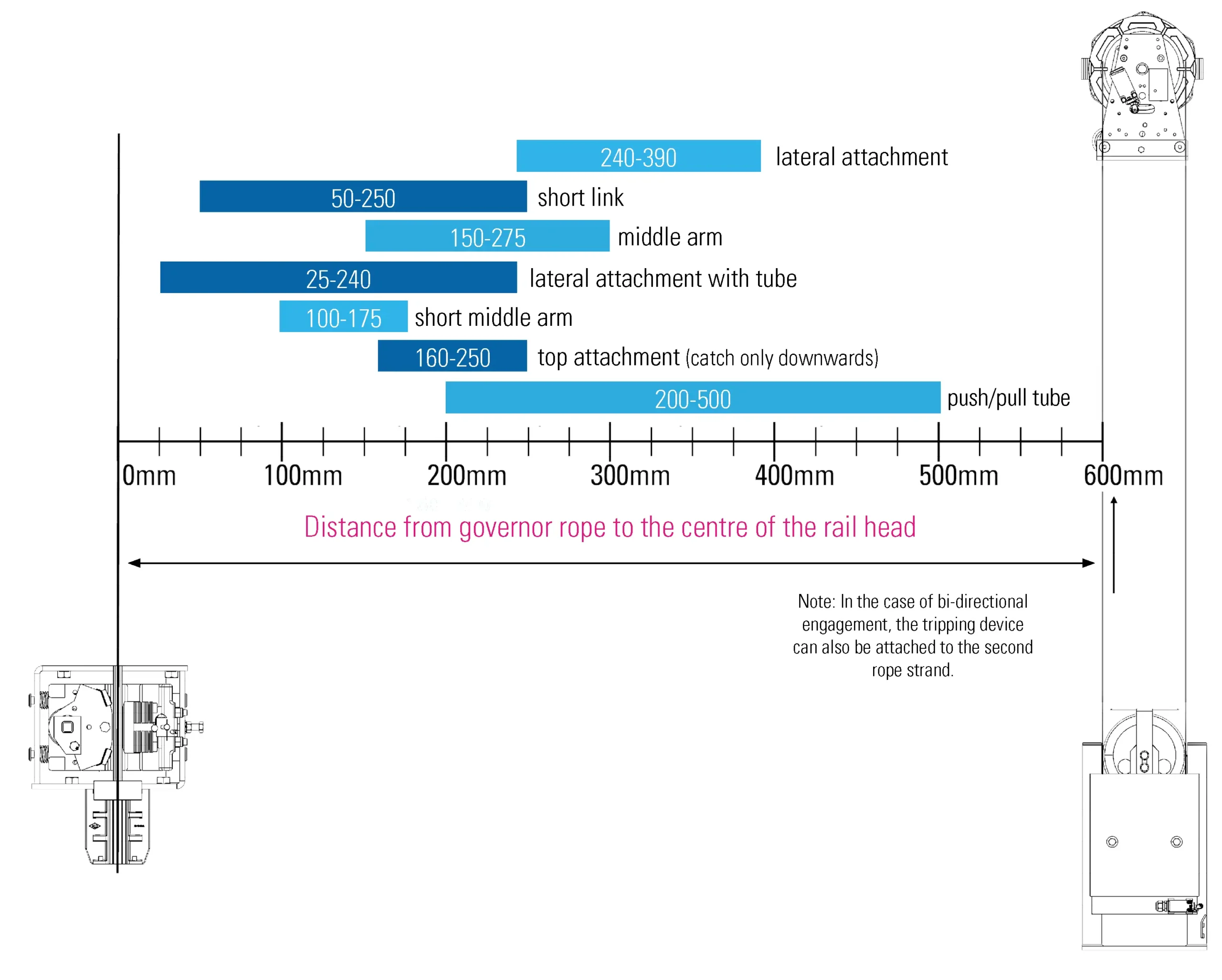

Die Fangvorrichtungen der Baureihe BF können auf unterschiedliche Weise mit dem Seil des Geschwindigkeitsbegrenzers verbunden werden. Die Wahl des am besten geeigneten Auslösegestänges hängt vom Abstand des Reglers zur Mitte des Schienenkopfes ab.
Download
The order forms can be found in our download area
BF tripping device ,,Lateral attachment”
Our standard release system for a distance between the governor rope and the centre of the guide rail of minimum 240 mm and maximum 390 mm
BF tripping device “Middle arm”
BF tripping device “short middle arm”
BF tripping device “Top attachement”
BF tripping device “Top attachment”
Only recommended for single-sided catch downwards!
BF tripping device, top attachment, without rope connection 106.700.393
BF tripping device, top attachment, with rope connection (5–6.5 mm) 106.700.401
BF tripping device, top attachment, with rope connection (6–8.0 mm) 106.700.391
BF tripping device “short link”
BF tripping device ,,Lateral attachment” in combination with a push/pull tube
If the distance between the governor rope and the centre of the guide rail is less than 240 mm or greater than 390 mm,
we recommend a combination with a push/pull tube.
Tripping device „Lateral attachment“ in combination with a push/pull tube
BF tripping device lateral without rope connection (5-6.5 mm) 106.700.392
Push/pull tube
- L =3,500mm 106.930.235
- L= 3,000mm 106.930.259
- L= 1,000mm 106.930.260
PU Accessories Pull tube and rope connection (5-6.5 mm) 106.850.442
PU Accessories Pull tube and rope connection(6-8.0 mm) 106.850.441
BF tripping device ,,Push/ pull tube”
Alternatively, the governor rope can be connected directly to the turntable of the safety gear via a push/pull tube. It is important that the push/pull tube is properly guided to prevent buckling, especially in the middle of the tube.
